Description

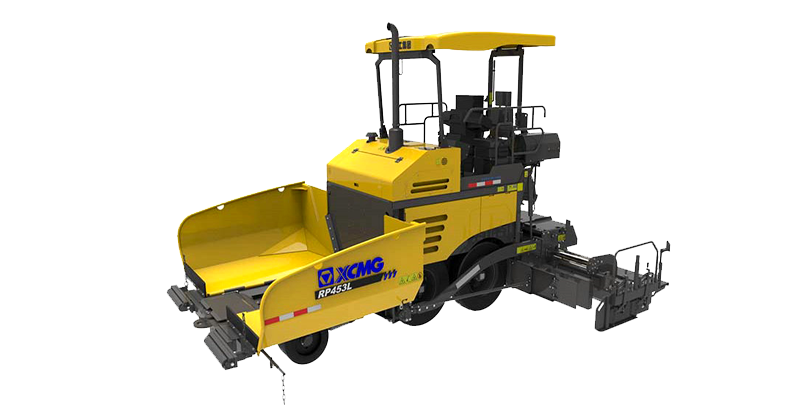

The XCMG RP453L is a compact yet powerful hydraulic-driven asphalt paver, ideal for municipal roads, rural routes, auxiliary lanes, sidewalks, and highway maintenance projects. Operating weight is approximately 11 tonnes, with a tractor base weight of around 9 t and total loaded weight near 11.9 t.
Paving capabilities span a basic width of 1.8 m and extend up to 4.5 m, with maximum layer thickness up to 260 mm, offering versatility in laying a wide range of asphalt depths. Productivity reaches up to 240 t/h, and paving speed ranges from 0 to 20 m/min, with travel speed up to 20 km/h
Parameter
Model
SC4H100.1G3
Max. paving width(mm)
4500
Max. pave thickness(mm)
260
Max. paving speed(m/min)
20
Max. drive speed(km/h)
20
Max. gradeability(%)
20
Rated power(kW)
73.5
Rated speed(rpm)
2000
