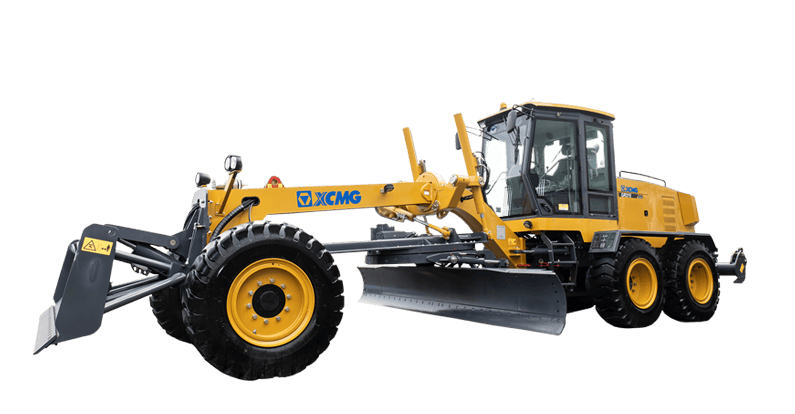

The XCMG GR215 is a medium‑sized motor grader engineered for demanding earthmoving, grading, and road‑building operations—ranging from long stretches of highways and airport tarmacs to large agricultural fields. Powered by a Cummins 6CTA8.3–C215 turbocharged diesel engine, it delivers 160 kW (215 hp) at 2,200 rpm for robust performance in tough environments. Weighing approximately 16,500 kg, this grader is built for stability and resilience, and it includes a moldboard measuring around 4,270 mm × 610 mm capable of full 360° swivel, with up to 500 mm cut depth and 450–460 mm lift height, enabling precise grading and soil manipulation
Description
Parameter
Engine Model
6CTA8.3-C215
Rated power/speed(kW/rpm)
160/2200
Machine dimension (standard)(mm)
8970 x 2625 x 3420
Operating Weight(kg)
16500
Tire specification
17.5-25
Wheel track(mm)
2156
Traction force(kN)
≥85
Maximum gradeability(%)
≥25
Minimum turning radius(m)
7.3
Maximum lift above ground(mm)
450
Maximum cutting depth(mm)
500
Blade Capacity(mm)
3965 x 610
Fuel tank(L)
280
